AHD DVR

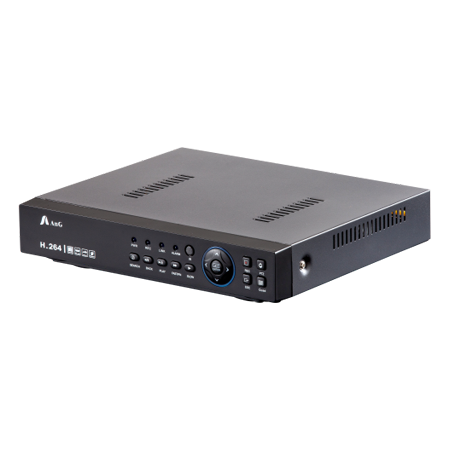

8CH AHD 1080N Realtime standalone DVR YC-SDVR-7108NA-V2
- Compression algorithm upgraded to H.264 High Profile，more advanced video Compression technique makes the code stream lowered at least 30%.
- Completely new graphics operating interface design, to let you experience easily and Conveniently.
- SDVR combines the functions of DVR/ HVR/ NVR together, multi-mode input (support Analog video, Analog HD video, network HD video input). No need to worry how to be Compatible with analog system, to choose DVR or HVR, just one SDVR can work.
- Super Strong processing capacity: can realize 8CH AHD 1080N real-time recording and 4CH AHD 1080N playback synchronously.
- Support main stream and extra steam encode synchronously. Main stream is for local Storage to maintain the image quality, extra stream is for network real-time transmission, To easily solve the bottleneck problem of bandwidth.
- Support super cloud service (this function is optional, specialized website for super cloud Service: www.dvrcenter.net), one step to do remote control easily & conveniently without Any complicated setting.
- Powerful net service(support DHCP, PPPOE, FTP,DNS, DDNS, ARSP (www.dvrcenter.com), NTP, UPNP, EMAIL, IP authority, IP search, alarm center, etc.），Complete enclosure (WEB, CMS, SDK），to easily achieve interconnection.
- Built-in IE plugs, no need to install from CD disk independently.
- Support 3G & WIFI extension.
- Support multi-browser (IE, Chrome, Firefox, and Safari).
- Support kinds of mobile monitor(iPhone, BlackBerry, Android）
- Multiplex operation: Preview, recording, playback, backup, network live, mobile phone View; all operations are independent of each other.
- Support many recording modes: Auto-continuing recording, timing recording, motion Detection recording.
- Playback mode support normal play, speed play, fast back play, manual and single-frame Play.
- Many backup device: USB flash disk, USB portable HDD and network. YC-SDVR-7108NA-V2 8CH AHD 1080N Realtime standalone DVR Products Feature
- Support alarm triggered recording will send alerts matter (some models support sending Picture) to the designated email.
- Support pre-alarm recording (before 10 sec), not lose any suspicious screen.
- Twenty kinds of language (English, Finnish, French, German, Greek, Italian, Japanese， Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc.), break up country limitation.
- System auto recovery to power after power reconnected, and return to the pre-power-down State. Model YC
Technical Specifications:
| MODEL NO. | YC-SDVR-7108NA-V2 |
|---|---|
| SYSTEM | |
| MAIN PROCESSOR | INDUSTRIAL GRADE EMBEDDED MICRO CONTROLLER CHIP HUAWEI HIS CHIPSET 3521A + 6114A. |
| OPERATING SYSTEM | EMBEDDED LINUX OPERATING SYSTEM. |
| DISPLAY | |
| OPERATION INTERFACE | 16 BIT REAL COLOR GUI INTERFACE SUPPORT MOUSE OPERATION. |
| DISPLAY SCREEN | (TAKE ALL ANALOG INPUT AS AN EXAMPLE, OTHER ARE DEPENDED ON THE SELECTED CHANNEL MODE). |
| VIDEO | |
| IMAGE ENCODE | H.264 (HIGH PROFILE). |
| MONITOR QUALITY | VGA : 1080P, HDMI : 1080P. |
| PLAY BACK QUALITY | MAX. SUPPORT 1080N UNDER HVR AND NVR MODE, MAX. SUPPORT AHD 1080N UNDER DVR MODE. |
| ENCODE CAPABILITY | 8 CH. AHD 1080N REAL TIME (DVR MODE). |
| DECODE CAPABILITY | 8 CH. AHD 1080P (DVR MODE). |
| MULTI - MODE VIDEO INPUT | DVR MODE : 8 CH. * 1080N/ 8 CH. * 720P/ 4 CH. * AHDL, HVR MODE : 8 CH. * 720P (AHD)/ 2 CH. 1080P + 2 CH. * 720P, NVR MODE : 4 CH. * 720P + 4 CH. * 720P. |
| MOTION DETECTION | EACH CHANNEL CAN SET 192 (16 * 12) DETECTION AREA : CAN SET MULTI - LEVEL OF FLEXIBILTY (FOR LOCAL ANALOG CHANNEL ONLY). |
| AUDIO | |
| AUDIO COMPRESSION | G.711A. |
| RECORD AND PLAY BACK | |
| LOCAL PLAY BACK | 1 - 4 CH. PLAY BACK SYNCHRONOUSLY, UNDER THE MODE OF DVR, MAX. SUPPORT 4 CH. AHD 1080N PLAY BACK SYNCHRONOUSLY. |
| VIDEO SEARCH | TIME, DATE, EVENT, CHANNEL SEARCH. |
| STORAGE AND BACKUP | |
| SPACE OCCUPATION | VIDEO : CIF 4 ~ 5G/ DAY * CHANNEL, D18 ~ 10G/ DAY * CHANNEL, 720P 20G/ DAY * CHANNEL, AUDIO 691.2M/ DAY * CHANNEL. |
| VIDEO STORAGE | LOCAL HDD, NETWORK. |
| BACKUP MODE | NETWORK BACKUP, USB PORTABLE HDD, USB DVD - RW. |
| INTERFACE | |
| VIDEO INPUT | 4 CH. BNC. |
| VIDEO OUTPUT | 1 CH. VGA, 1 CH. HDMI. |
| AUDIO INPUT | 4 CH. RCA. |
| AUDIO OUTPUT | 2 CH. |
| NETWORK PORT | RJ - 45 PORT (10/100M) SELF - ADAPTIVE ETHERNET PORT. |
| PTZ CONTROL | 1 RS 485, SUPPORT MULTI KINDS OF PTZ PROTOCOL. |
| USB PORT | 2 * USB 2.0. |
| HDD PORT | 1 SATA (EACH MAX. SUPPORT 6TB). |
| WIRELESS PORT | 3G, WIFI (EXTENSION VIA USB PORT). |
| OTHER | |
| TOUR | YES. |
| REMOTE CONTROLLER | YES. |
| POWER | 12V/ 2A. |
| DIMENSION | 260 (LENGTH) X 234 (WIDTH) X 45 (HEIGHT). |
