AHD DVR

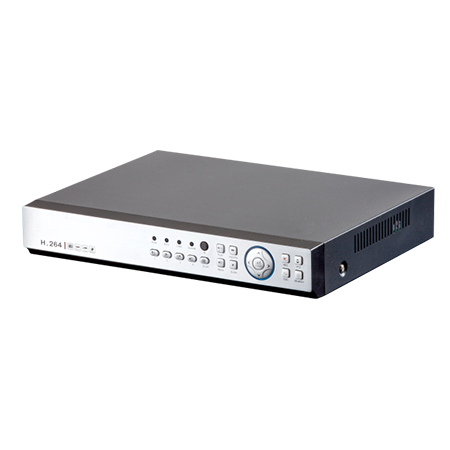

4 SATA 5 in one DVR F Series YC-SDVR7008F-H-E

  • Support 8ch 1080P real-time encoding.
  • Support AHD, TVI, CVI, CVBS, IP video input.
  • HDMI/VGA simultaneous video output.
  • 1.5U Case, 4 SATA (Up to 8TB).
  • 1*10/ 100 Mbps auto-sensing Ethernet port, RJ45 port.
  • Automatic networking support, a key to add equipment.
  • Support the Onvif protocol.
  • Support GB28181 (Optional).
  • Cloud services, P2P, alarm information push to phone.
  • Support remote access, support ARSP.
  • Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, Alarm center, etc.
  • Mobile phone remote monitoring (iOS, Android).
  • Multi browser access (IE, Chrome, Firefox, Safari).
  • Support for more than twenty languages.
  • Perfect protection circuit, unique triple watchdog function.
  • Support WEB, CMS, VMS, MYEYE Platform.

Technical Specifications:

MODEL NO.YC-SDVR7008F-H-E
SYSTEM
MAIN PROCESSORHISILICON HI3531A
VIDEO
codecH.264.
ENCODE8 * 1080P.
DECODE8 * 1080P.
MULTI - MODEANALOG : 8 * 1080P, HYBRID : 8 * 1080P (ANALOG) + 8 * 1080P (IP), IP : 4 * 5M, 4 * 3M 8 * 1080P + 8 * 960P, 16 * 960P.
PLAY BACK8 CH.
AUDIO
COMPRESSIONG.711A.
INTERCOMSUPPORT.
MANAGEMENT
RECORD MODEMANUAL, ALARM, MOTION DETECTION, TIMING.
INQUIRE MODEINQUIRE BY TIME/ CALENDAR/ EVENT/ CHANNEL.
STORAGE MODEHDD STORAGE, NETWORK STORAGE.
BACKUP MODENETWORK, USB, SATA.
INTERFACE
VIDEO INPUT8 * BNC (SUPPORT COAXITRON).
HDMI OUTPUT1 * HDMI (MAX. : 4K).
VGA OUTPUT1 * VGA (MAX. : 1080P).
AUDIO I/O8/ 1.
ALARM I/O16/ 4.
ETHERNET PORT1 * 10/ 100 Mbps ETHERNET PORT, RJ 45 PORT.
PTZ CONTROL1 * RS 485, SUPPORT FOR MULTIPLE PTZ PROTOCOL.
USB PORT3 * USB 2.0 PORTS.
HDD4 * SATA INTERFACE (UP TO 8TB).
GENERAL
TEMPERATURE0° - + 55°.
HUMIDITY10% - 90% RH.
POWER SUPPLY12V/ 6A.
CONSUMPTION<10W (WITHOUT HDD).
WEIGHTAROUND 4 KG.
DIMENSION440 MM (L), 400.5 MM (W), 60 MM (H).
