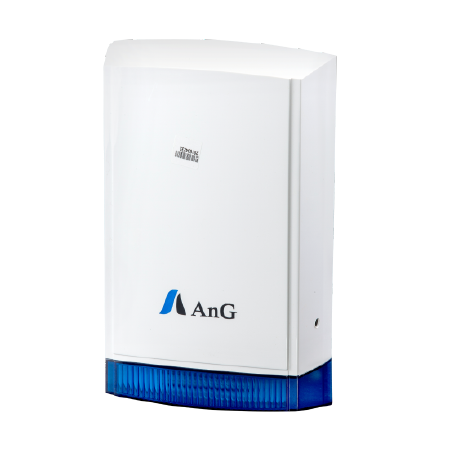

BELL BOX ANG2S225
- Highly resistant ABS housing, UV prevention.
- Inside tropicalized metal cover for double protection.
- Magnetic dynamic sounders with 120DB at 1M.
- Capable of detecting the panel tamper and Panel power loss conditions
- Positive/negative siren trigger.
- Positive/negative flash trigger.
- Protection against cut wires, lamp damage and any other type of tampering
- Battery Backup.
- Hold off mode for preventing false alarms while maintenance
- Battery monitoring with fault output.
- 3 Way tamper switch protection.
Technical Specifications:
| MODEL NO. | ANG2S225 |
|---|
| ELECTRICAL | |
| Sound Pressure Level: | 120dB. |
| Fundamental Frequency: | 1850 Hz. |
| Siren Tone: | Dual Tone for Intrusion and Fire Alerts. |
| Frequency Range: | 1300-2400 Hz. |
| Flash Light: | Lamp 12VDC/ 5W. |
| Power Supply Voltage: | 13.8-14.2 VDC. |
| Charge Current Limit: | 250mA. |
| Current Consumption (Speaker and Strobe): | Standby-8mA, Alarm-1600mA @ 13.8 VDC. |
| MaximumPower: | 50W (Peak). |
| Trigger Level: | Tigger Low-Max. 1 VDC, Trigger High-Min. 9 VDC. |
| Siren Alarm Period: | F.T-Follow Trigger, TMR-3 Min. |
| Input Impedance (Alarm/ Flash/ Trigger): | 1 K Ohm. |
| Tamper Switch: | N.C. 28 VDC, Max. Current 0.1 A-Open when cover is removed. |
| Backup Battery: | Rechargeable Lead Acid Battery 12V up to 1.3Ah. |
| Low Battery Level: | 8 VDC±0.3 VDC. |
| Material | External Box-ABS (3mm Thick), Internal CoverMetal (0.8mm Thick). |
| Operating Temperature: | -30°C to±60°C. |
| IP Rating: | IP 45. |
| Dimensions: | 280 X 195 X 100mm. |
| Weight (Without Battery): | 1.85 Kg. |
