Loud Speaker

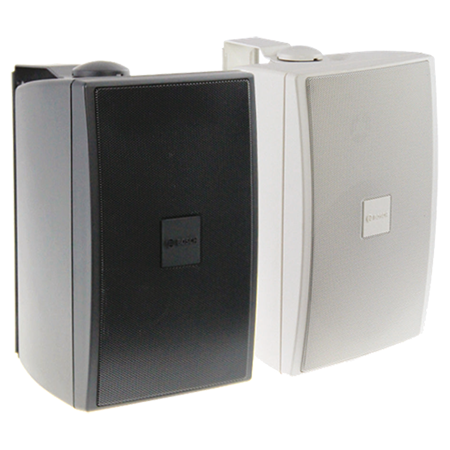

PREMIUM-SOUND CABINET LOUDSPEAKER, 15W LB2-UC15-D1
- High-fidelity music and speech reproduction
- Selectable 8 ohm, 70 V and 100 V inputs
- Compact yet robust ABS enclosure
- Supplied with adjustable mounting bracket
- Water and dust protected IP65
Technical Specifications:
| MODEL NO. | LB2-UC15-D1 |
|---|
| Electrical | |
| Maximum power | 22.5 W |
| Rated power | 15 W |
| Power tapping | 15/7.5/3.75/1.9 W |
| Sound pressure level at rated power / 1 W (1 kHz, 1 m) | 99/87 dB (SPL) |
| Effective frequency range (-10 dB) | 95 Hz to 20 kHz |
| Opening angle | 184° / 112° (hor.), 170° / 35° (ver.) |
| Rated input voltage | 11/70/100 V |
| Rated impedance | 8/326/667 ohm |
| Transducers | 101.6 mm (4"), woofer, 13 mm, (0.51 ") dome tweeter |
| Connector | 2 m (78.8 in.), two‑wire cable |
| Mechanical | |
| Dimensions (H x W x D) | 205x136x117 mm, 8.07x5.35x4.60 in |
| Weight | Approx. 1.9 kg, (4.18 lb) |
| Color | White (RAL 9010) (L) or Charcoal (RAL 7021) (D) |
| Environmental | -25 ºC to +55 ºC (-13 ºF to +131 ºF) |
| Operating temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity | <95% |
