Loud Speaker

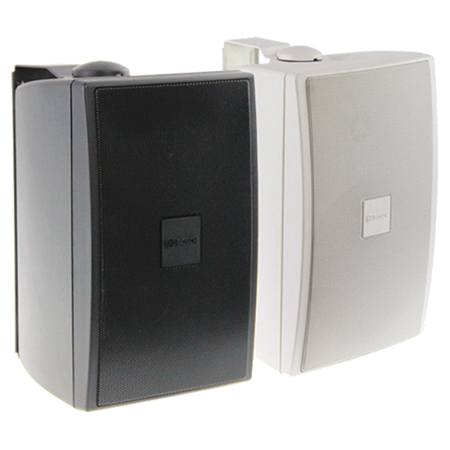

PREMIUM-SOUND CABINET LOUDSPEAKER, 30W LB2-UC30-L1
- High-fidelity music and speech reproduction
- Selectable 8 ohm, 70 V and 100 V inputs
- Compact yet robust ABS enclosure
- Supplied with adjustable mounting bracket
- Water and dust protected IP65
Technical Specifications:
| MODEL NO. | LB2-UC30-L1 |
|---|
| Electrical | |
| Maximum power | 45 W |
| Rated power | 30 W |
| Power tapping | 30/15/7.5/3.75 W |
| Sound pressure level at rated power / 1 W (1 kHz, 1 m) | 105/90 dB (SPL) |
| Effective frequency range (-10 dB) | 100 Hz to 19 kHz |
| Opening angle | 166° / 83° (hor.), 140° / 76° (ver.) |
| Rated input voltage | 15.5/70/100 V |
| Rated impedance | 8/163/333 ohm |
| Transducers | 127 mm (5"), woofer, 13 mm, (0.51 ") dome tweeter |
| Connector | 2 m (78.8 in.) two‑wire cable |
| Mechanical | |
| Dimensions (H x W x D) | 250x 60x140 mm, 9.84x6.30x5.51 in |
| Weight | Approx. 2.4 kg, (5.29 lb) |
| Color | White (RAL 9010) (L) or Charcoal (RAL 7021) (D) |
| Environmental | -25 ºC to +55 ºC (-13 ºF to +131 ºF) |
| Operating temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity | <95% |
