Loud Speaker

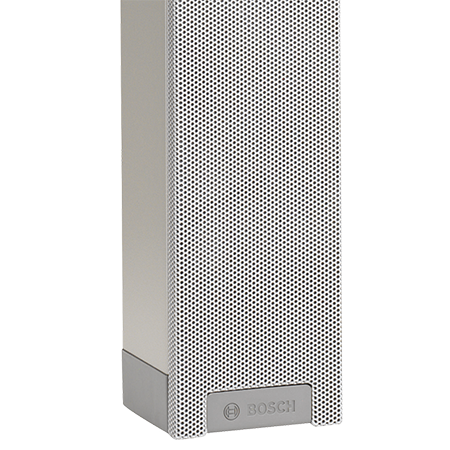

LINE ARRAY INDOOR LOUDSPEAKER, 30W LBC-3200-00
- Extended listening area
- Excellent intelligibility of speech and music
- Uniform distribution of natural sound throughout the room
- Ideal combination of advanced acoustics and easy application
- EN 54‑24 certified
Technical Specifications:
| MODEL NO. | LBC 3200/00 |
|---|
| Maximum power | 45 W |
| Rated power | 30 / 15 / 7.5 W |
| Sound pressure level at 30 W / 1 W (1 kHz, 1 m) | 106 / 91 dB (SPL) |
| Sound pressure level at 30 W / 1 W (2 kHz, 1 m) | 108 / 93 dB (SPL) |
| Effective frequency range (-10 dB) | 190 Hz to 18 kHz |
| Opening angle | 1 kHz / 4 kHz (-6 dB) |
| horizontal | 220° / 130° |
| vertical | 70° / 18° |
| Rated input voltage | 100 V |
| Rated impedance | 333 ohm |
| Connector | Screw terminal block |
| Mechanical | |
| Dimensions (H x W x D) | 600 x 80 x 90 mm (23.62 x 3.15 x 3.54 in) |
| Weight | 3 kg (6.6 lb) |
| Color | Light gray (matches RAL 9022) |
| Environmental | |
| Operating temperature | -25 ºC to +55ºC (-13 ºF to +131 ºF) |
| Storage temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity | <95% |
