Loud Speaker

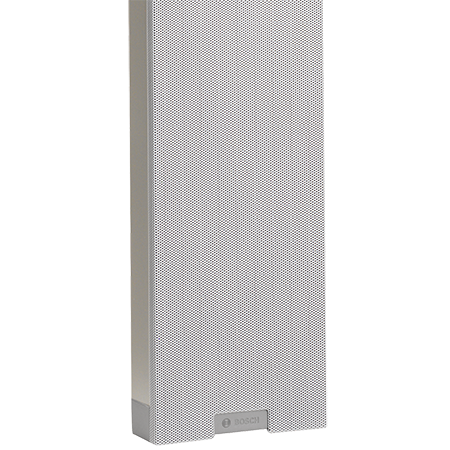

LINE ARRAY INDOOR OUTDOOR LOUDSPEAKER, 60W LBC-3210-00
- Extended listening area
- Excellent intelligibility of speech and music
- Uniform distribution of natural sound throughout the room
- Provision for inside mounting the optional line/loudspeaker supervision board
- EN 54‑24 certified
Technical Specifications:
| MODEL NO. | LBC3210/00 |
|---|
| Electrical | |
| Maximum Power | 90 W |
| Rated Power | 60 / 30 / 15 W |
| Sound pressure level at 60 W / 1 W (1 kHz, 1 m) | 115 dB / 97 dB (SPL) |
| Effective frequency range (-10 dB) | 190 Hz to 20 kHz |
| Opening angle | 1 kHz / 4 kHz (-6 dB) |
| horizontal | 170° / 90° |
| vertical | 55° / 18° |
| Rated input voltage | 100 V |
| Rated impedance | 167 ohm |
| Connector | Screw terminal block |
| Mechanical | |
| Dimensions (H x W x D) | 1200 x 160 x 90 mm (47.24 x 6.3 x 3.54 in) |
| Weight | 9 kg (19,8 lb) |
| Color | Light gray (matches RAL 9022) |
| Environmental | |
| Operating temperature | -25 ºC to +55ºC (-13 ºF to +131 ºF) |
| Storage temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity | <95% |
