Wireless Mike

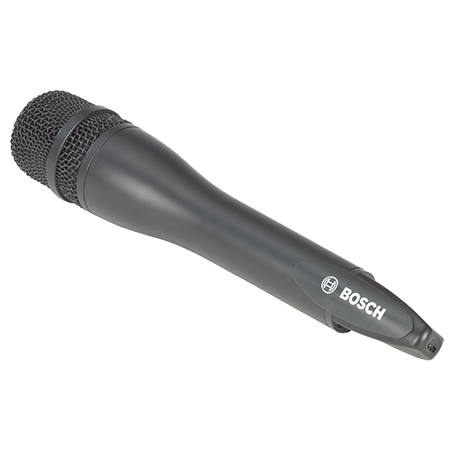

UHF WIRELESS HANDHELD MICROPHONE, RANGE-722-746 MHz. MW1-HTX-F5

  • 97-193 selectable UHF channels.
  • PLL synthesized technology.
  • LCD with battery status and frequency indication.
  • Lock function.
  • Approximately 15 hours operation on alkaline batteries.

Technical Specifications:

Electrical
Batteries2 x LR6/AA/UM3 1.5 V
Battery life timeApprox. 15 hrs
ModulationFM frequency modulation
Frequency selectionPLL synthesized control
Frequency range722 to 746 MHz.
Channels193 channels, (in steps of 125 kHz).
Frequency stability±0.005%
Frequency deviation± 48 kHz
S/N ratio>102 dB
RF output10 mW
Spurious rejection>60 dBc
Dynamic range>110 dB
Polar patternUnidirectional
Transducer typeCondenser
Frequency response50 Hz ~ 15 kHz
Mechanical
Dimensions (H x W)260 x 50 mm (10.24 x 1.96 in)
ColorCharcoal
Weight350 g (0.77 lb)
AntennaIntegrated
Environmental
Operating temperature-25 °C to +55 °C ,(-13 °F to +131 °F)
Storage temperature-40 °C to +70 °C ,(-40 °F to +158 °F)
Relative humidity<95%
