Wireless Mike

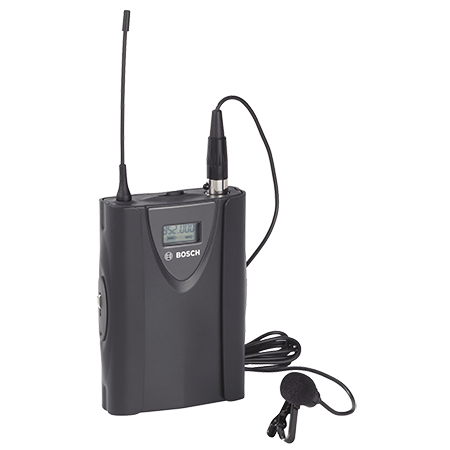

UHF WIRELESS BELT-PACK TRANSMITTER, RANGE-790-814 MHz. MW1-LTX-F1

  • 97-193 selectable UHF channels.
  • PLL synthesized technology.
  • LCD with battery status and frequency indication.
  • Lock function.
  • Approximately 15 hours operation on alkaline batteries.

Technical Specifications:

Electrical
Belt-pack
Batteries2 x LR6/AA/UM3 1.5 V
Battery life timeApprox. 15 hr
ModulationFM frequency modulation
Frequency selectionPLL synthesized control
Frequency range790 to 814 MHz
Channels193 channels in steps of 125 kHz
Frequency stability±0.005%
Frequency deviation±48 kHz
S/N ratio>102 dB
RF output10 mW
Spurious rejection>60 dBc
Dynamic range>110 dB
Frequency response50 Hz to 15 kHz
SquelchPilot tone & noise mute
Mechanical
Belt-pack
Dimensions (H x W x D)105 x 78 x 34 mm without antenna
(without antenna)(4.13 x 3.07 x 1.34 in)
ColorCharcoal
Weight176 g (0.38 lb)
AntennaFlexible
Environmental
Operating temperature-25 °C to +55 °C
Storage temperature-40 °C to +70 °C
Relative humidity<95%
